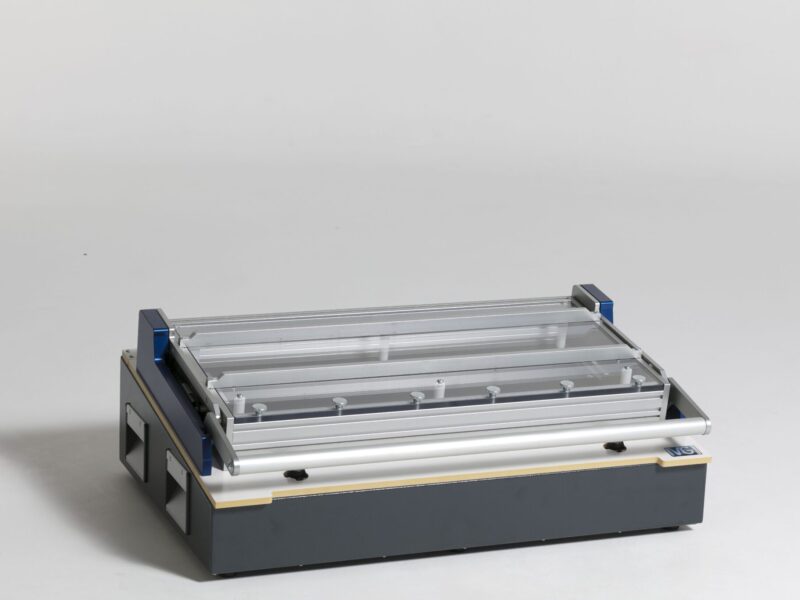

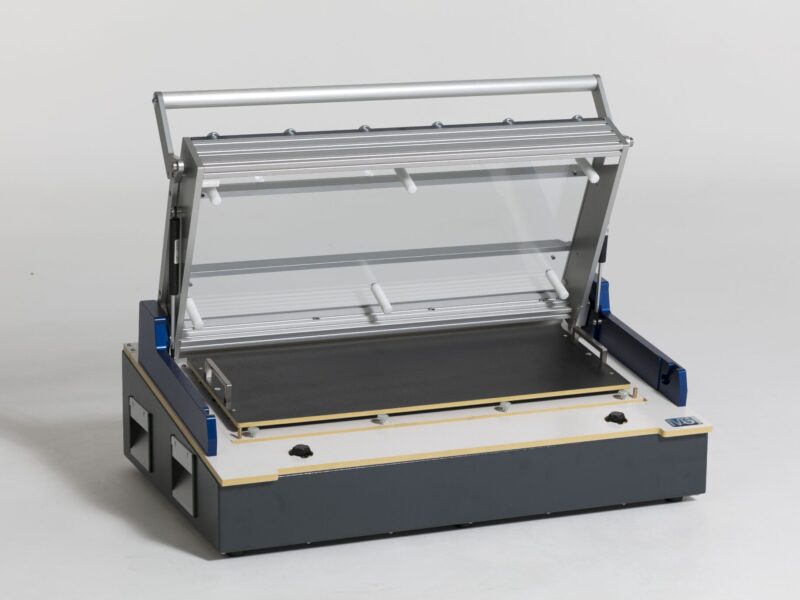

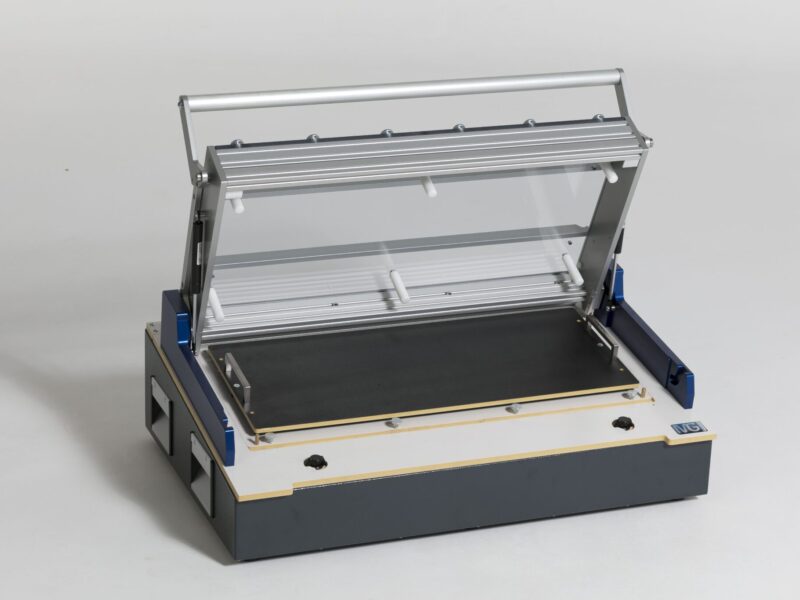

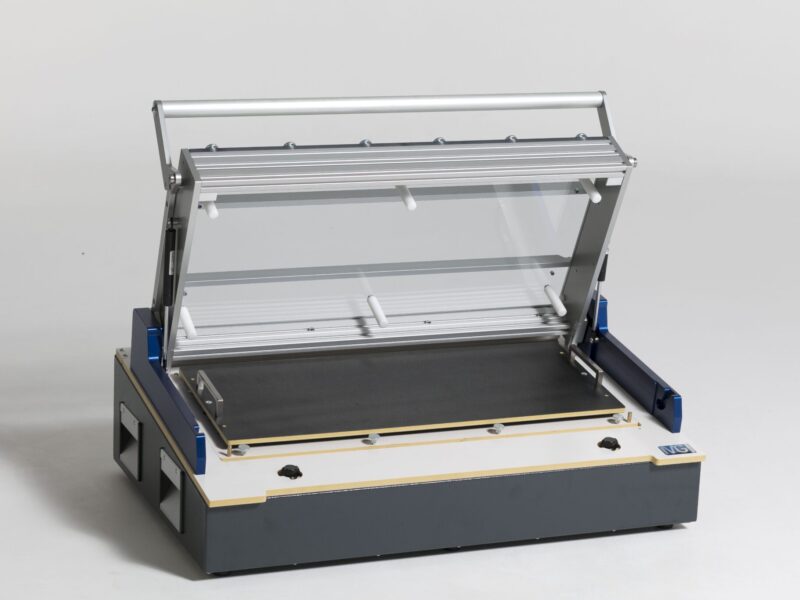

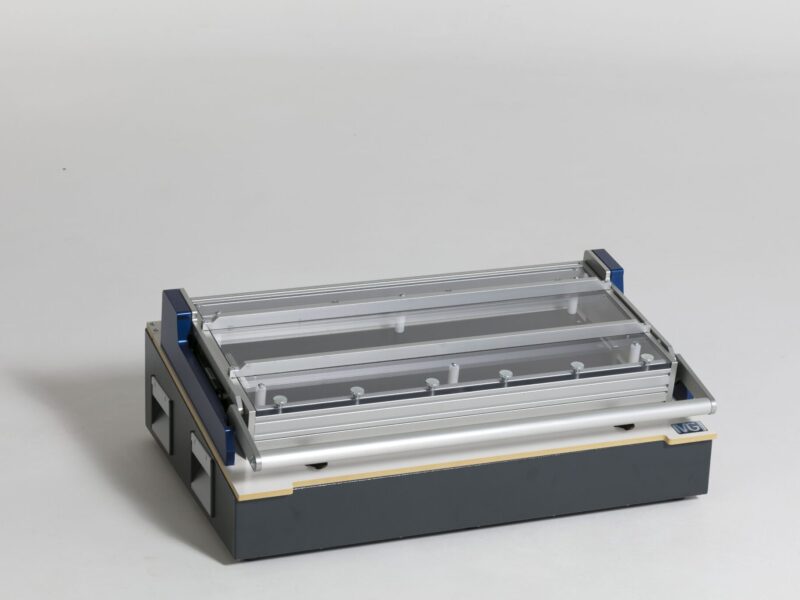

IG-03 Manual Fixture Kit with Changeable Cassette
The IG-03 from Ignys is a high-capacity bed-of-nails test fixture designed for accurate and repeatable electrical testing of modern electronics. Built with precision aluminium components and a unique linear click system, the IG-03 guarantees reliable probe contact and long-term mechanical stability, even in high-volume production environments.
With support for up to 1,300 spring-loaded probes and a large DUT area, the IG-03 is ideal for testing complex PCBs or multi-board panels. Its ergonomic housing offers generous space for integrating measurement electronics, while interchangeable cassette systems simplify maintenance and product changeovers.
Key Features
- Linear click system with ball bearings and gas springs for smooth, reliable actuation
- 10 mm ESD-safe top cover with aluminium reinforcement bars

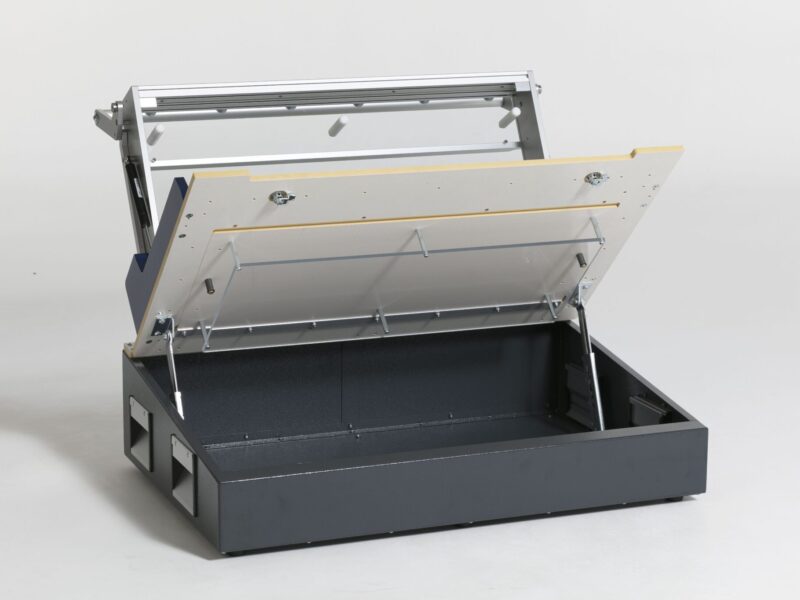

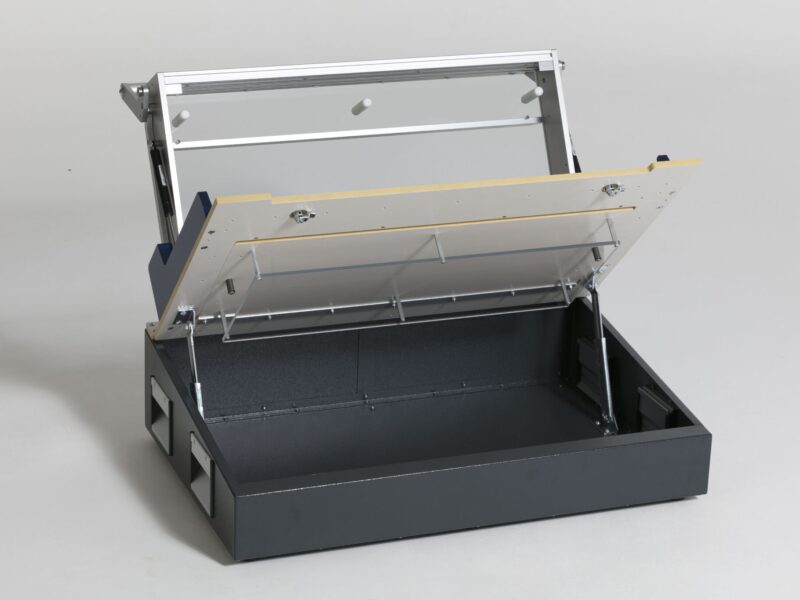

- Steel base cabinet with detachable aluminium back and bottom panels
- Interchangeable cassette system with 8 mm spring-loaded probe protection cover
- Telescopic guide rail and catch for secure operation
