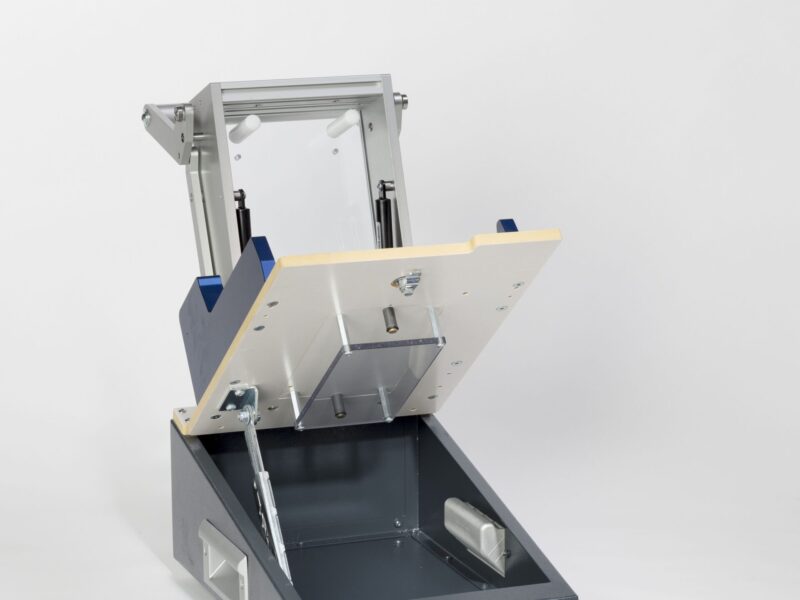

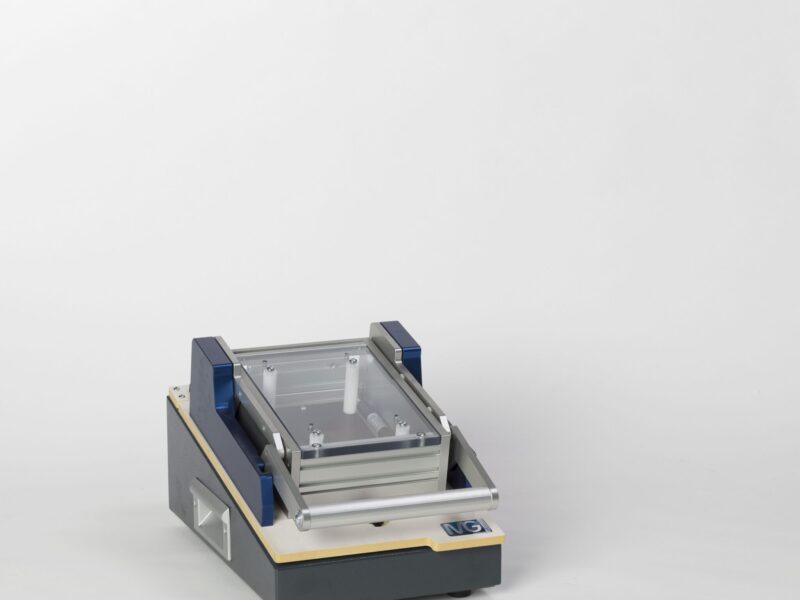

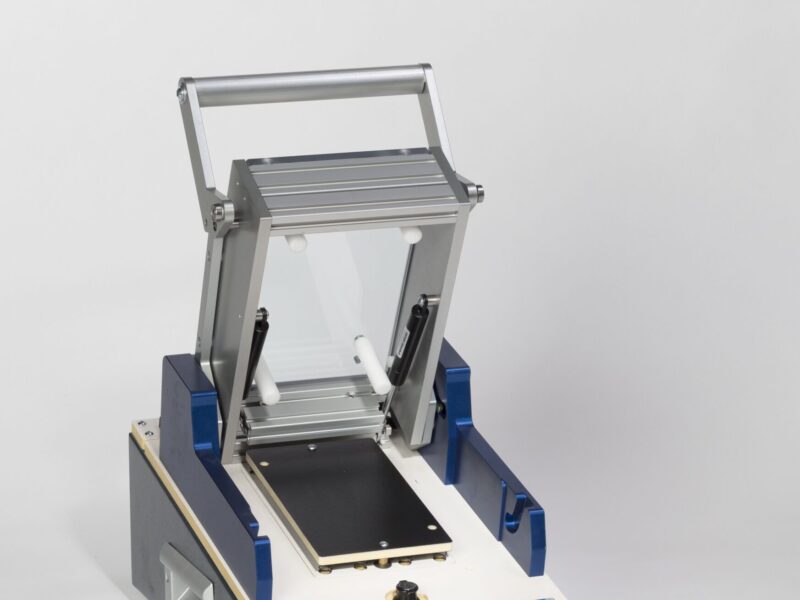

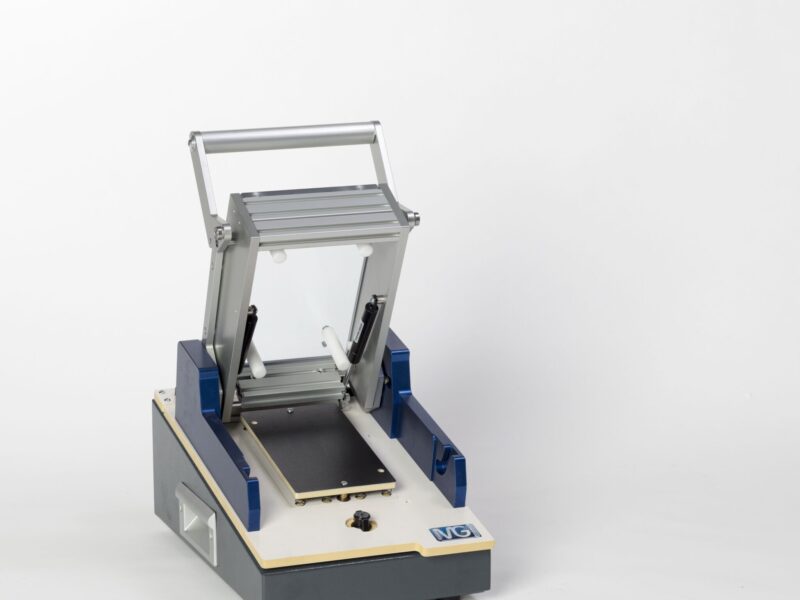

IG-01 Bed-of-Nails Test Fixture
The IG-01 from Ignys is a robust bed-of-nails test fixture designed for accurate, repeatable electrical testing of small PCBs and panel assemblies. Engineered with solid aluminium parts and a unique linear click system, the IG-01 ensures precise probe engagement and long service life, even in demanding production environments.
With support for up to 650 spring-loaded probes and a spacious DUT area, the IG-01 is ideal for testing complex or multi-board units. Its modular, changeable cassette system simplifies product changeovers, while the ergonomic housing provides generous space for integrating additional measurement electronics.
Key Features:
- Solid aluminium and steel construction with gas-spring linear click system
- 10 mm ESD-proof top cover with aluminium reinforcement

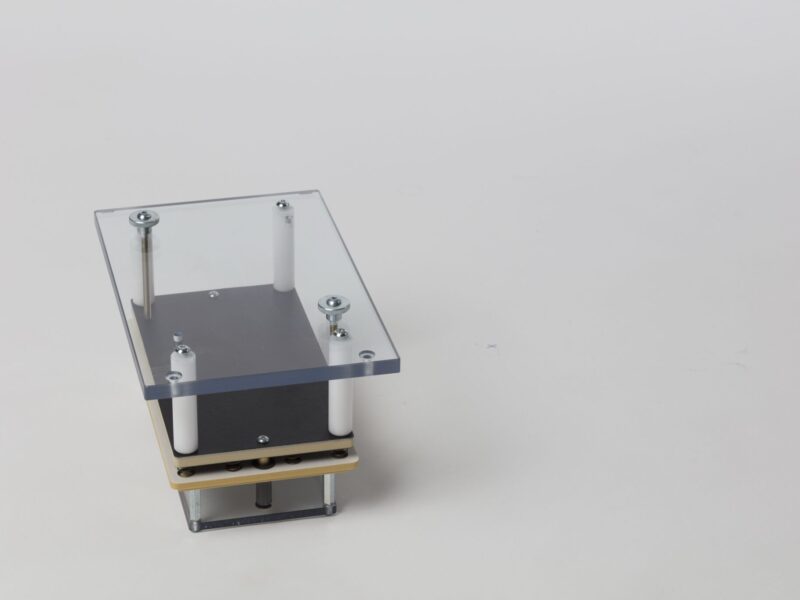

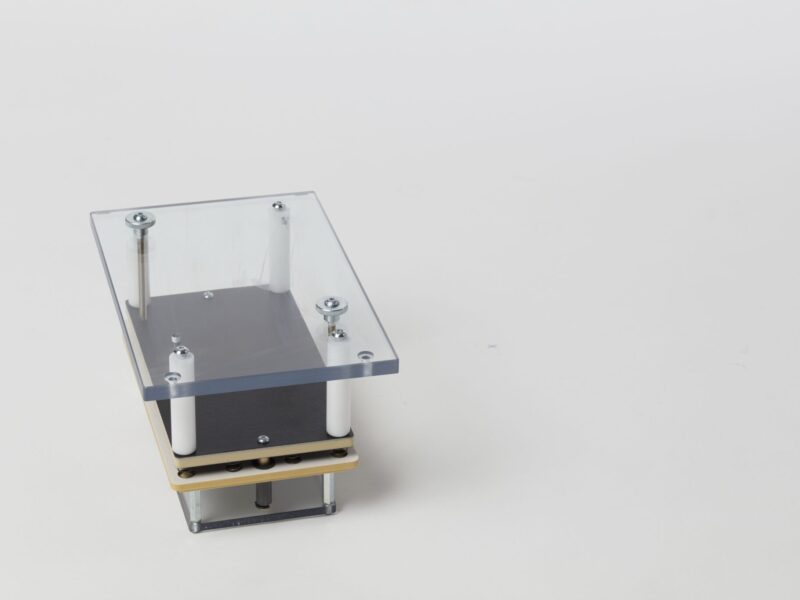

- Detachable interchangeable cassette system with probe protection cover
- Telescopic guide rail on base housing for easy use
