Product Information

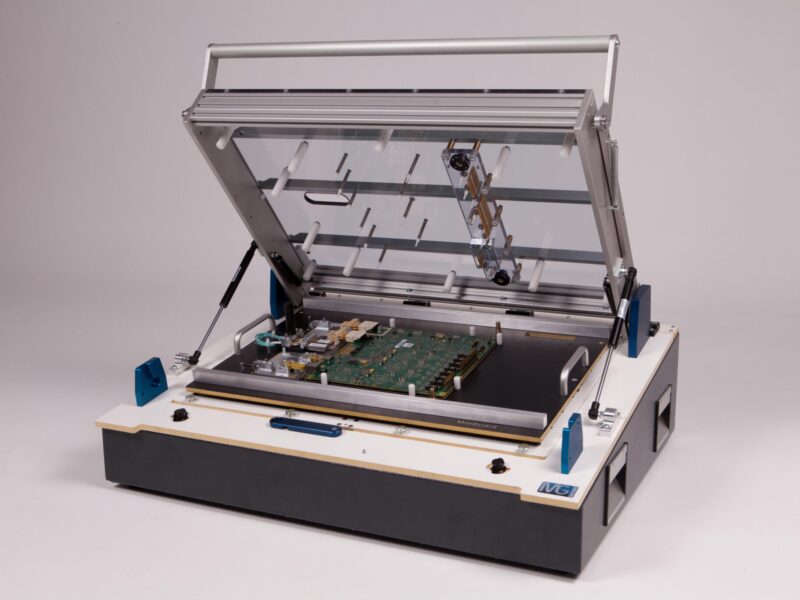

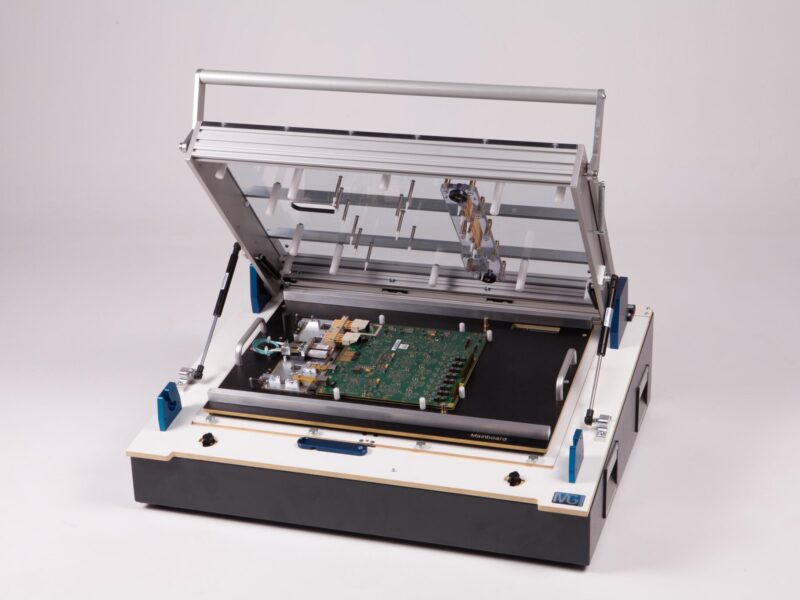

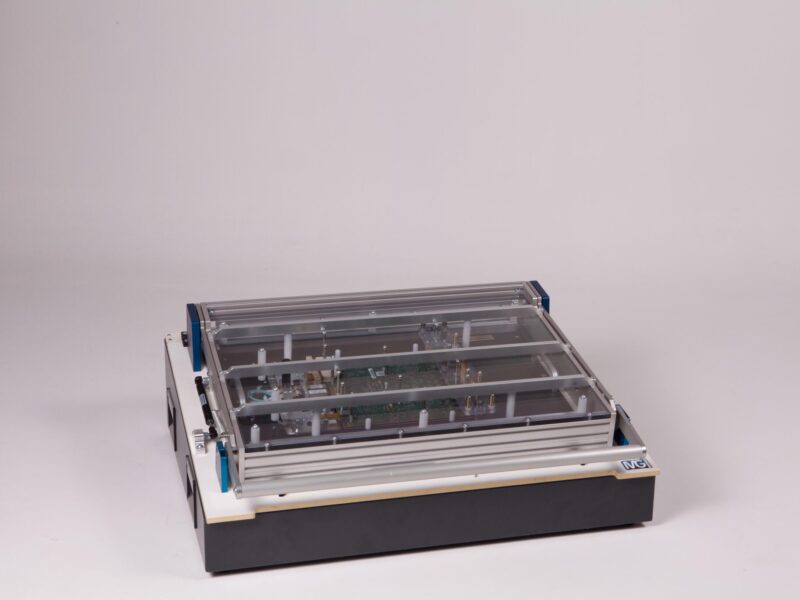

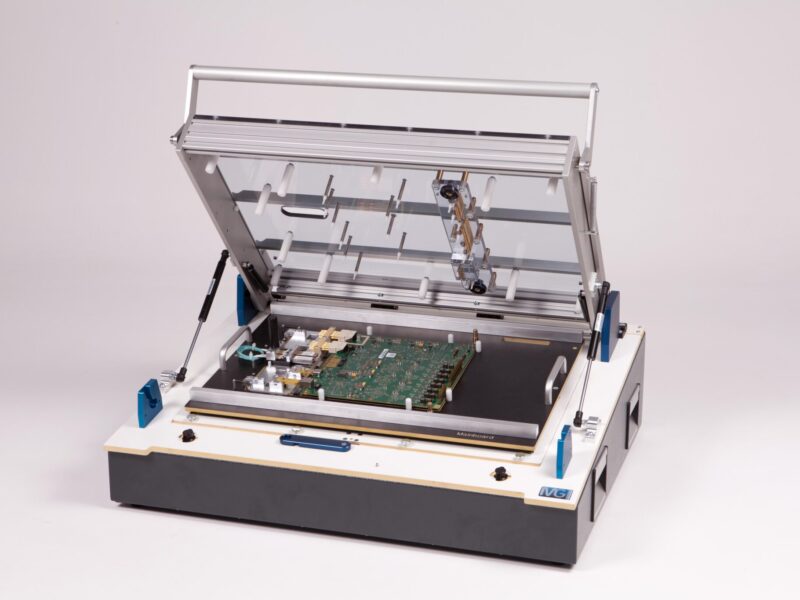

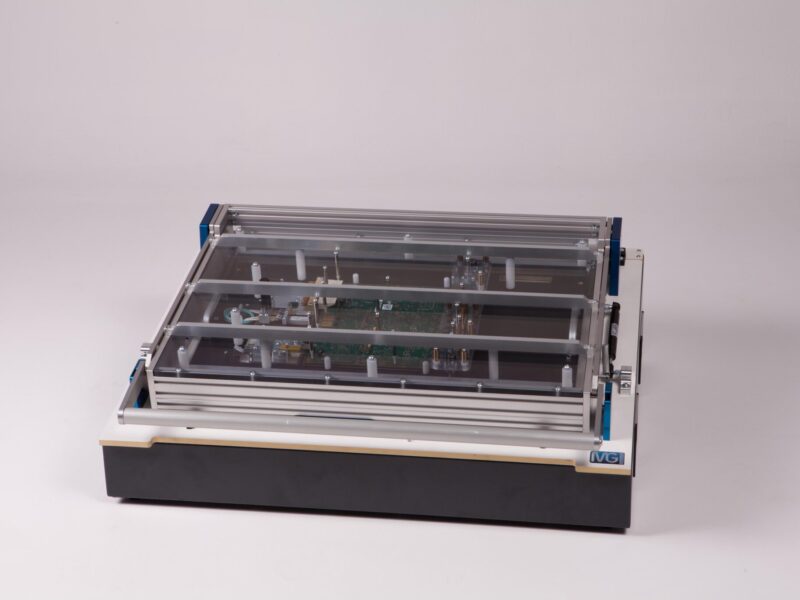

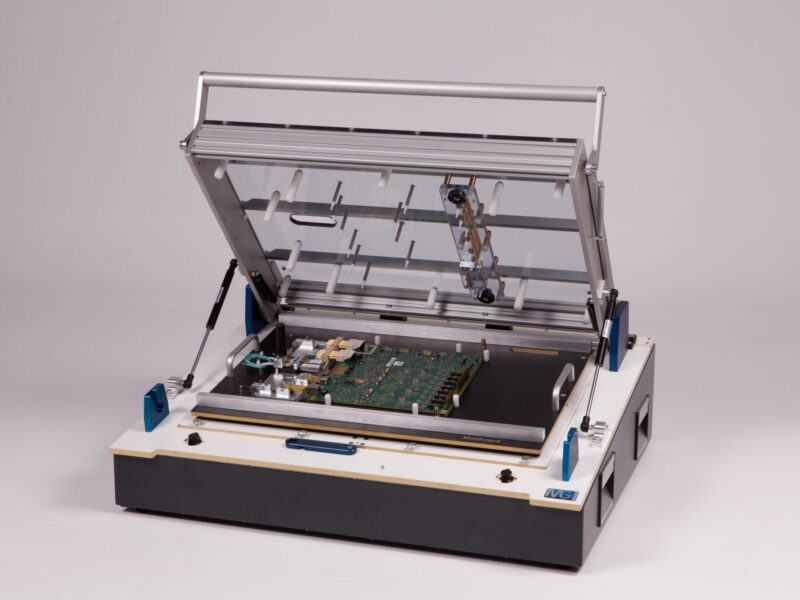

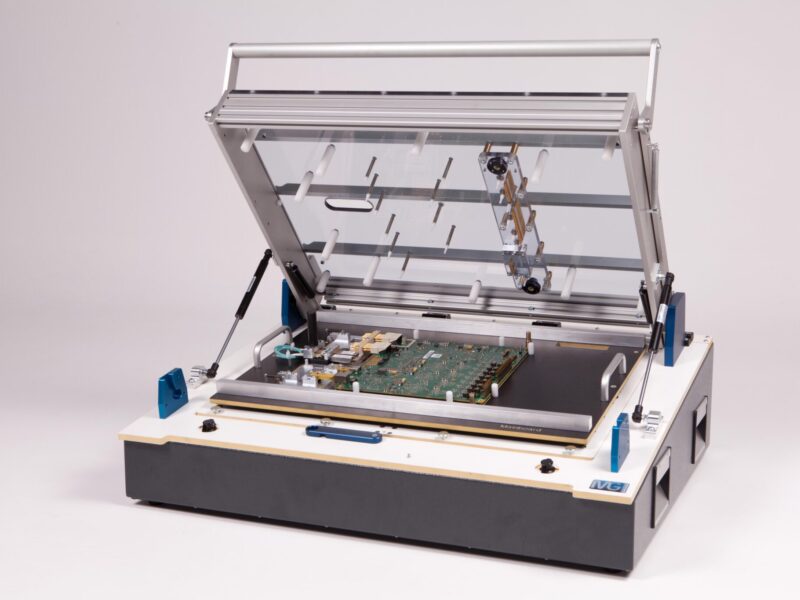

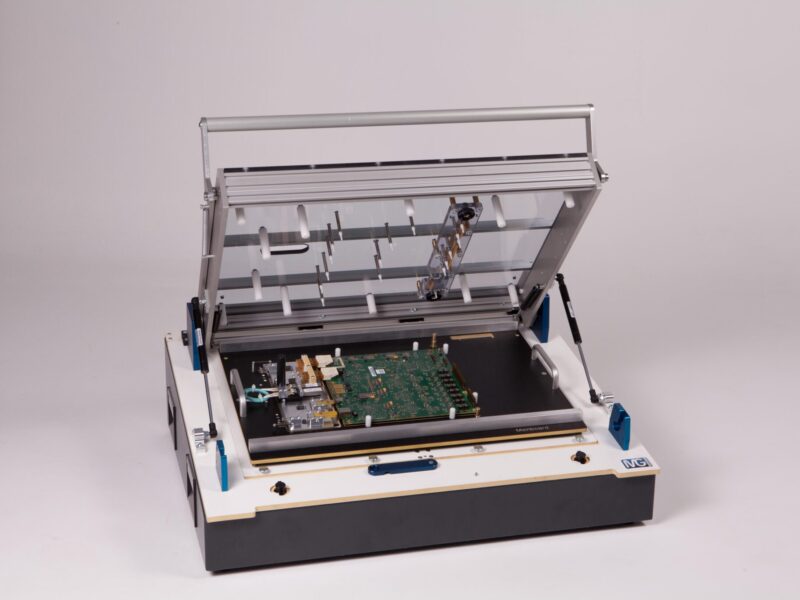

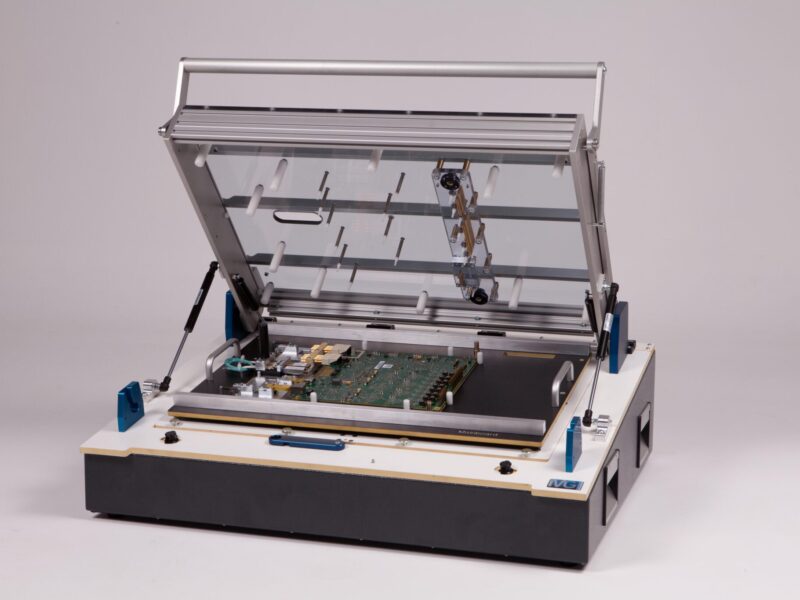

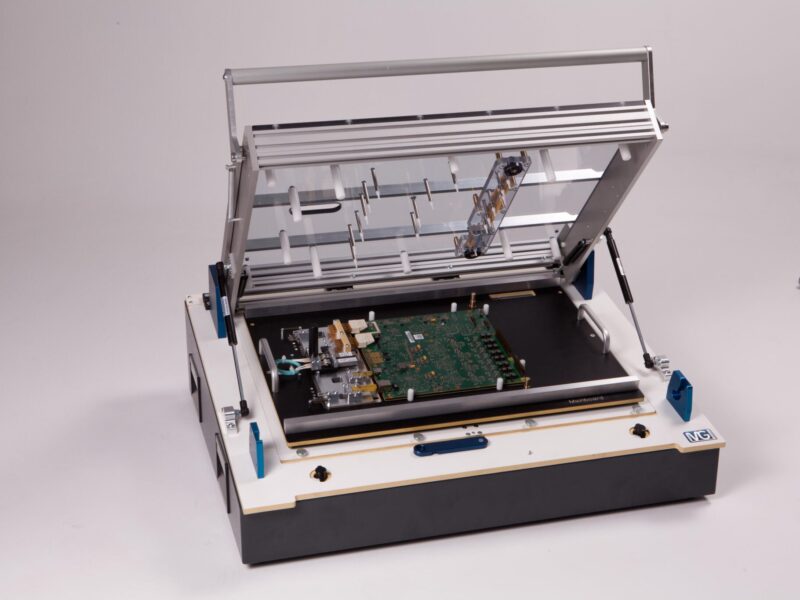

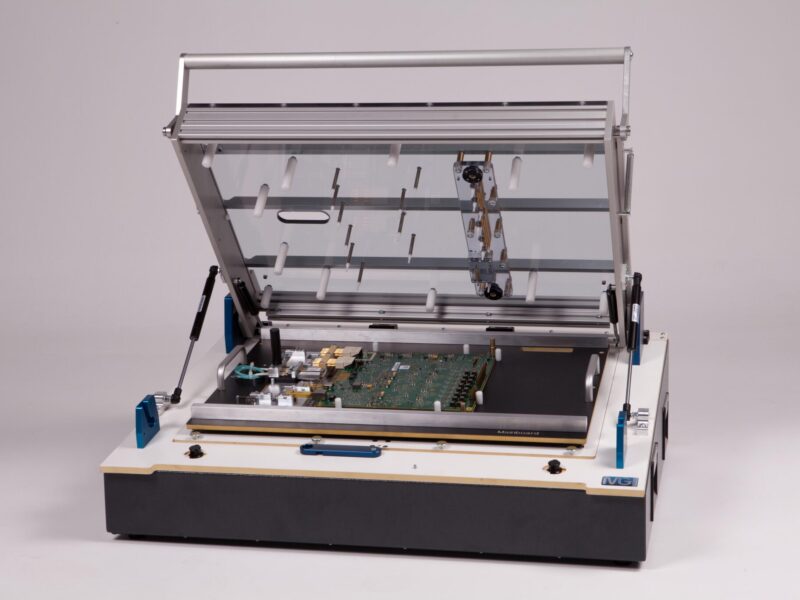

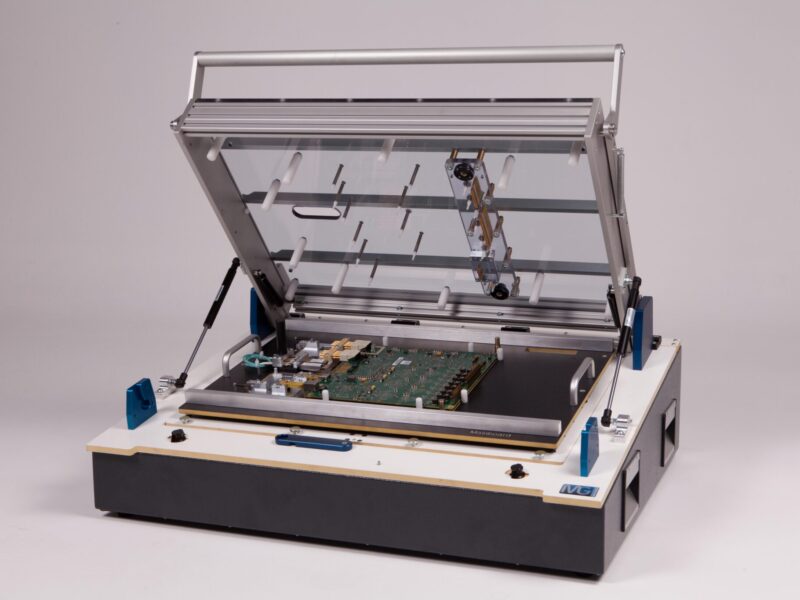

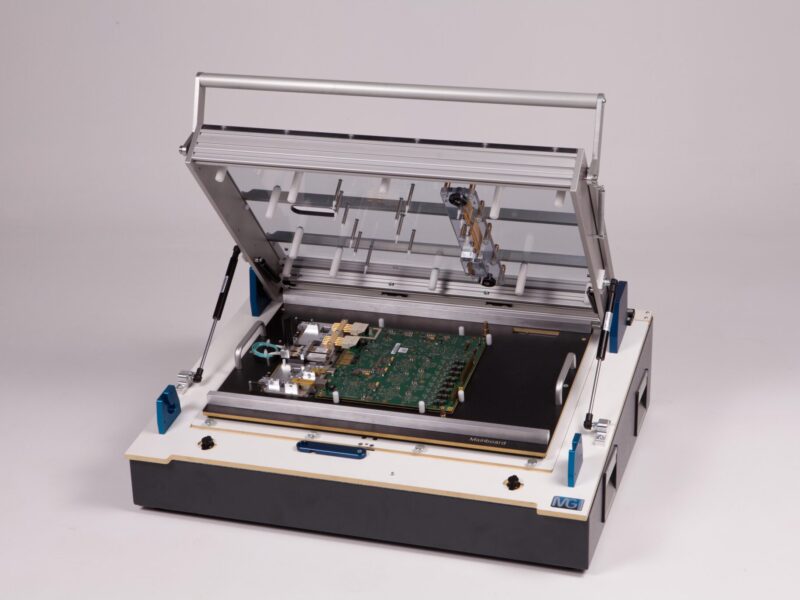

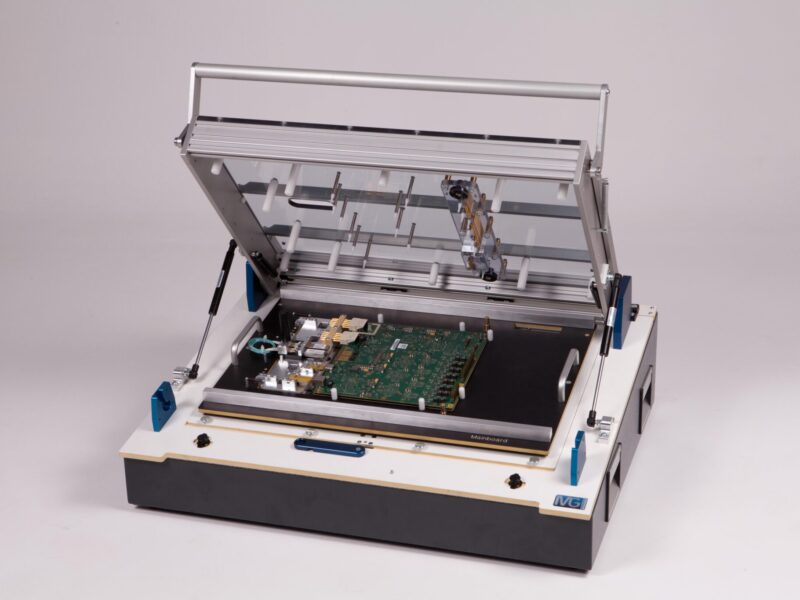

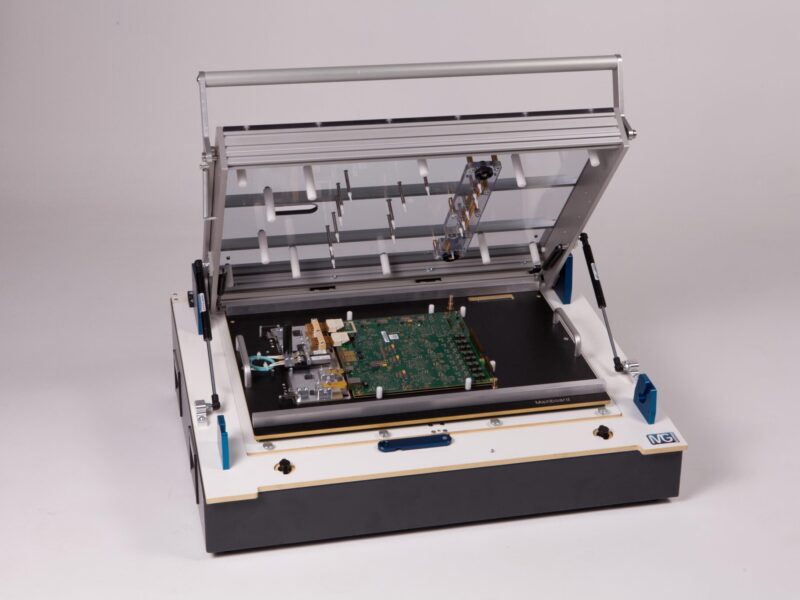

The IG-04 from Ignys is a robust bed-of-nails test fixture designed for accurate, repeatable electrical testing of larger PCBs and panel assemblies. Engineered with solid aluminium parts and a unique linear click system, the IG-04 ensures precise probe engagement and long service life, even in demanding production environments.
With support for up to 1,300 spring-loaded probes and a spacious DUT area, the IG-04 is ideal for testing complex or multi-board units. Its modular, changeable cassette system simplifies product changeovers, while the ergonomic housing provides generous space for integrating additional measurement electronics.
Key Features
- Linear click system with ball bearings and gas springs for smooth, reliable actuation
- 10 mm ESD-proof top cover with aluminium reinforcement bars

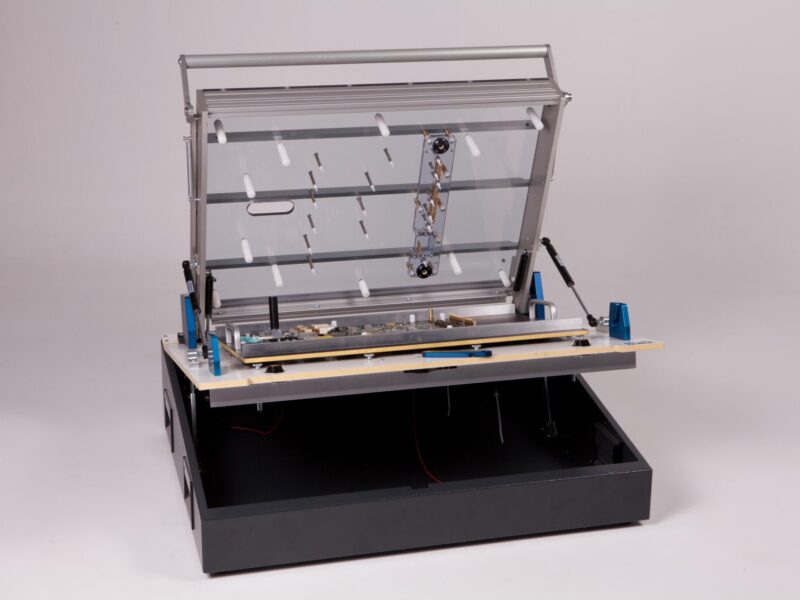

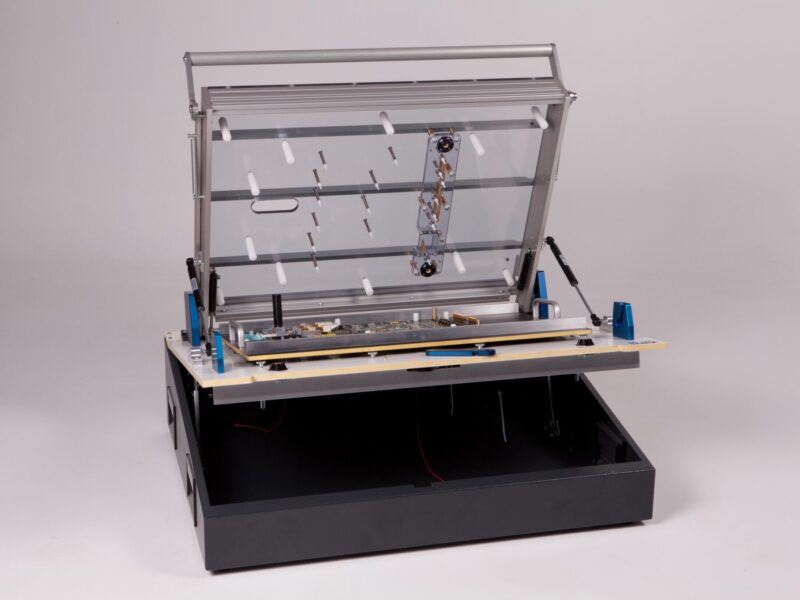

- Steel base cabinet with detachable aluminium back and bottom panels
- Interchangeable cassette system with 8 mm spring-loaded probe protection cover
- Telescopic guide rail and catch for secure and easy operation
